Tumbler Cage Size:Length Is 1000mm Within Discharge Outlet
Drying Unit Arrangement:Each 4-section Rotating Cage For A Group(2x2 Arrangement),the General Configuration For 3 Groups
Overall Size( Unit ):2000x1550x1900mm(LxWxH)
Drying Time:8h-24h Different Drying Time For Differentproduct
Blower Capacity:2*900=1800m3/h(each Cage)
Max Power:20kw/Unit
Water Chiller Power:2kw/Unit
Transport Function:Y Type Diversion Device,automaticswitching, Cage Automatic Forward And Reverse
Highlight:
rotary cage soft capsule drying machine
,
8h soft capsule tumbler
,
8h soft capsule drying machine
Basic Infomation
Place of Origin:China
Brand Name:TIENMIN
Certification:CE ISO SGS
Model Number:RTD580x900l-CS
Payment & Shipping Terms
Packaging Details:Standard export wooden
Delivery Time:20-30 working days
Payment Terms:L/C,T/T, Western Union, MoneyGram, D/P
Supply Ability:30 pcs/month
Gallery

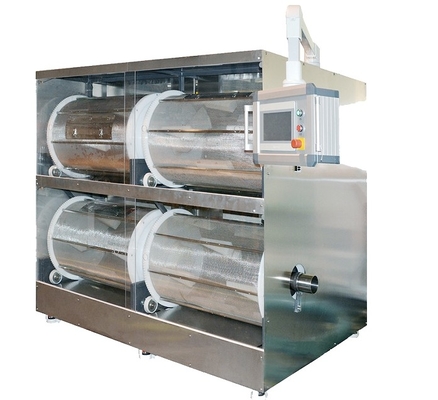

Desiccant Rotary Cage Soft Capsule Drying Machine Drying Time 8h-24h Different Drying Time RTD580x900l-CS
Product Description
RTD580x900l-CS desiccant rotary cage dryer unit
Product introduction
The rotary cage type dryer is used for shaping and drying of soft capsules, which canmake the moisture content of just pressed soft capsule skin meet the dryingrequirement. Each rotating cage has two fans, adopting large air volume and intensivedesign; each rotating cage can be independently rotated forward and backward, andthe speed can be adjusted by frequency conversion; the rotating cage control can beautomatically controlled by PLC when the rotating cage is used as an on-line modelwith the host machine, it can also be manually controlled when the intervention runsalone.
