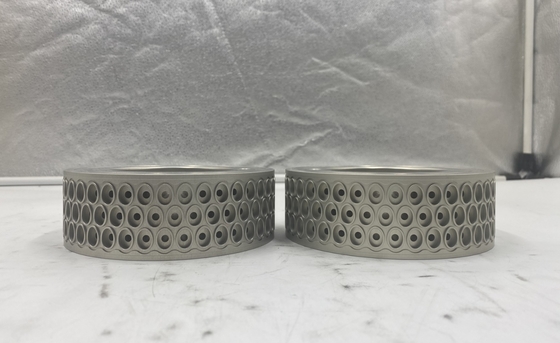

150x50mm Olive Shaped OV Soft Capsule Die Roll For Soft Capsule Machine Equipment Mold Capsule Multi Step

China Diameter 150x50mm Olive shaped OV (model 1.5#OV-32#OV) Soft capsule machine equipment mold capsule multi-step

Olive-shaped OV (model 1.5#OV-32#OV)

Product introduction

Soft capsule multi-step mold: The reasonable design of the triangular block and the edge steps on both sides can effectively reduce the problem of weak capsule seams caused by rubber deformation during the pill pressing process. This design can effectively relieve the passive tension of the rubber and reduce rubber deformation. Make the seams of the rubber balls stronger. The optimized cavity spacing design enables the mesh glue rate to be higher than 60% and the cost is lower. The unique cavity and spray body curve design helps the capsule to form and seal better.

Changing the arrangement and processing method of the mold cavity, using the limited space of the mold, without changing the equipment or the mold cavity, greatly improves the utilization rate of the rubber, achieves greater output of the mold, and saves at least 200 gelatin costs per day. Yuan and above.

Technical Parameters

Diameter150x50mm
